High Definition Entertainment Enjoyment
Enjoy all ATSC HDTV standards and 8-channel digital audio for a superb
multimedia experience. Experience data transfers of 5 Gbps of bandwidth and
the upgrade options for future enhancements and requirements. Messy cables
behind your device will be a thing of the past. With HDMI – the industry
standard digital interface, a single cable will support standard, enhanced,
or high-definition video and plus multi-channel digital audio
ASUS Splendid Video Intelligence technology
The exclusive ASUS Splendid Video Intelligence technology is especially
effective for human skin tones, green stretches of grass and trees and blue
sky and sea. It takes PC graphics capability to the next level by enhancing
depth and color intensity in real time. It further improves contrast,
brightness, skin tone and color saturation for vivid image display.
Incorporated with the exclusive ASUS Splendid Video Intelligence Engine
(activation hot key: Fn+C), the LCD presents clear and sharp images in their
true vibrant colors.
Wireless Video Communication
The high-resolution webcam module is one of the smallest lenses available
that integrates seamlessly into the F6Ve‘s LCD panel and together with a
built-in high quality microphone wire-free video conferencing is possible
anywhere.
Powerful Graphics Engine
The F6 breezes through applications with ease. Sift through photo albums,
play audio files, surf the web and video conference with smooth graphics.
The F6Ve is further equipped with the ATI HD3470 chipset to handle
fast-action 3D intense games.
RF Biometric Fingerprint Reader
ASUS F6A incorporates an AuthenTec fingerprint sensor with TruePrint®
technology, which enables the sensor to reliably read virtually everyone's
fingerprint every time. TruePrint technology uses small RF signals to detect
the unique fingerprint patterns beneath the skin's surface where the true
fingerprint resides. For the most accurate reading, the AuthenTec
fingerprint sensor scans fingerprint patterns from the live layer of the
skin, bypassing many common skin surface conditions.

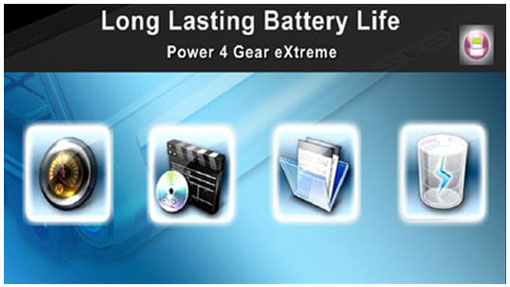

Exclusive Power Saving Technology
Power4 Gear eXtreme is a unique technology available exclusively from ASUS
only. It offers four operation modes designed specifically for various
applications. Power is distributed according to the operation modes to
ensure that no power goes to waste.
Intel,the Intel logo,the Centrino logo, and Centrino, are
trademarks or registered trademarks of Intel Corporation or its subsidiaries
in the United States and other countries
* All specifications are subject to change without notice. Please check with
your supplier for exact offers. Products may not be available in all
markets.
* PCB color and bundled software versions are subject to change without
notice.
* Brand and product names mentioned are trademarks of their respective
companies.
13.3" WXGA Resolution 1280x800, Color-Shine (Glare-type),Asus Splendid
Video Intelligent Technology
Video Graphics & Memory
ATI Mobility™ Radeon® HD 3470, 256MB VRAM DDR2 (DX10.1)
Hard Drive
2.5" 9.5mm SATA
320GB,5400rpm
Optical Drive
5.25" , 12.7mm
DVD Super Multi
Blu-Ray DVD Combo (optional)
Card Reader
5 in 1 card reader:
Video Camera
1.3 Mega Pixel web camera
Fax/Modem/LAN/WLAN
Integrated Intel® High Definition Audio chip ( Azalia) compliant MDC
fax/modem and 10/100/1000 Base T
Integrated 802.11 a/g/n
Built-in Bluetooth™ V2.0+EDR (optional)
Intel® Wireless WiFi Link 5100 ABGN
LED Status Indicator
Power-on/Suspend
Battery Charging/full/low
Storage device access
Capital / Scroll / Number Lock
Wireless on status indicator (optional)
Bluetooth on status indicator (optional)
Interface
1 x Express card
1 x Microphone-in jack
1 x Headphone-out jack (S/PDIF)
1 x VGA port/Mini D-sub 15-pin for external monitor
4 x USB 2.0 ports (1 for E-SATA combo port)
1 x IEEE 1394 port
1 x RJ11 Modem jack for phone line
1 x RJ45 LAN Jack for LAN insert
1 x HDMI
1 x E-SATA
Hot Keys
Instant launch Keys,2 buttons:
Wireless Switch, Power4Gear eXtreme
Function Keys:
Fn+F1 Suspend switch
Fn+F2 WLAN switch
Fn+F2 Bluetooth switch
Fn+F3 Access to the E-mail
Fn+F4 Access to the Internet
Fn+F5 Brightness down
Fn+F6 Brightness up
Fn+F7 LCD on/off
Fn+F8 LCD/CRT switch display
Fn+F9 TouchPad Lock
Fn+F10 Volume on/mute
Fn+F11 Volume down
Fn+F12 Volume up
Fn+Num Lk: Scroll Lock on/off
Fn+Space Power 4Gear eXtreme
Fn+C Splendid
Fn+T Power4Phone
Fn+V Camera capture
Fn+↑: Stop
Fn+↓: Play/Pause
Fn+ ←:Skip to Previous Track
Fn+ →:Skip to Next Track
Audio
Built-in Azalia compliant audio chip, with 3D effect & full duplex
Built-in speaker and microphone
KeyBoard
18.5 mm full size 88key with MS-Windows function keys
Battery Pack & Life
6 cells
AC Adapter
Output: 19 V DC, 4.7 A, 90W
Input 100 -240 V AC, 50/60 Hz universal
Dimension & Weight
31.6 x 23.27 x 2.7 ~ 3.52 cm (W x D x H)
1.99 kg, (with 3 cell battery)
Security
BIOS Booting / HDD User Password Protection and security lock
Kensington lock hole
TPM(Trusted Platform Module) V1.2
Fingerprint(optional)
Supplied Accessories
Optical Mouse
Carrying bag
Multimedia Software
ASUSDVD 6-in-1
Preinstall PowerDVD v7 (*For Basic & Business only)
Preinstall Power2Go v5
Bundle ASUSDVD 6-in-1 CD (*For Basic & Business only)
Bundle Power2Go CD (*For Premium & Ultimate)
Note: Premium & Ultimate are with MCE from Windows Vista support
Virus & Tool Software
Norton™ Internet Security 2008
Adobe Acrobat Reader 8.0
NERO 7 Essentials
Operating System Recovery Disk
Recovery Hard Drive Hidden Partition
ASUS Utility
Asus Win flash for BIOS and Driver live Update
ASUS SmartLogon
Asus Live Update
Asus Multi-Frame
Power 4 Phone
Asus NB Probe +
ASUS Life Frame 3
ASUS Wireless Console
ASUS Security Protect Manager(ASPM)
Warranty & e-support
2-year limited global hardware warranty
*different by country
1-year battery pack warranty
30days Zero Bright Dot LCD
On-line problem resolution through web interface (BIOS, Driver update)
OS (Microsoft Windows Vista) install/uninstall consultation
Bundled software install/uninstall consultation
ASUS software supporting
Dimension & Weight
Color / Net Weight / Dimension (W*D*H)
Black / 4.3lbs / 12.2"*9"*1.2"-1.4"
Office Ready
Pre-installed 60-day trial of Microsoft Office 2007
OS Compatibility
Windows Vista
*Windows XP driver is not available
