13.3" WXGA Resolution 1280x800, Color-Shine (Glare-type),Asus Splendid
Video Intelligent Technology
Video Graphics & Memory
ATI Mobility™ Radeon® HD 4570, 512MB VRAM DDR2 (DX10.1)
Hard Drive
2.5" 9.5mm SATA
320GB,5400rpm
Optical Drive
5.25" , 12.7mm
DVD Super Multi
Blu-Ray DVD Combo (optional)
Card Reader
5 in 1 card reader:
Video Camera
1.3 Mega Pixel web camera
Fax/Modem/LAN/WLAN
Integrated Intel® High Definition Audio chip ( Azalia) compliant MDC
fax/modem and 10/100/1000 Base T
Integrated 802.11 a/g/n
Built-in Bluetooth™ V2.0+EDR (optional)
Intel® Wireless WiFi Link 5100 ABGN
LED Status Indicator
Power-on/Suspend
Battery Charging/full/low
Storage device access
Capital / Scroll / Number Lock
Wireless on status indicator (optional)
Bluetooth on status indicator (optional)

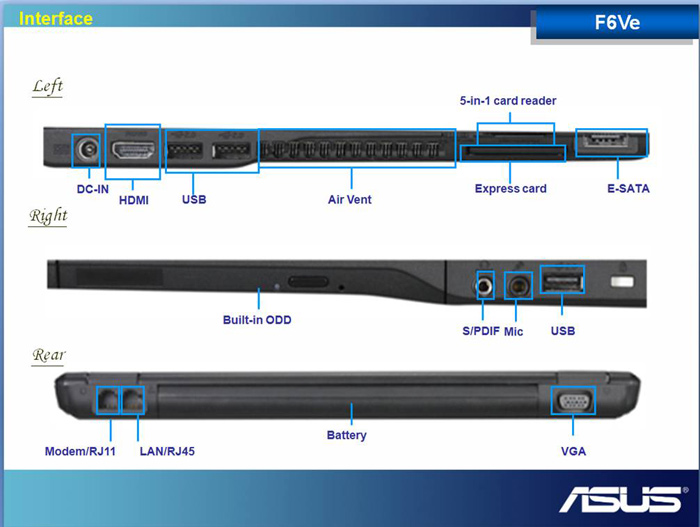

Interface
1 x Express card
1 x Microphone-in jack
1 x Headphone-out jack (S/PDIF)
1 x VGA port/Mini D-sub 15-pin for external monitor
4 x USB 2.0 ports (1 for E-SATA combo port)
1 x IEEE 1394 port
1 x RJ11 Modem jack for phone line
1 x RJ45 LAN Jack for LAN insert
1 x HDMI
1 x E-SATA
Hot Keys
Instant launch Keys,2 buttons:
Wireless Switch, Power4Gear eXtreme
Function Keys:
Fn+F1 Suspend switch
Fn+F2 WLAN switch
Fn+F2 Bluetooth switch
Fn+F3 Access to the E-mail
Fn+F4 Access to the Internet
Fn+F5 Brightness down
Fn+F6 Brightness up
Fn+F7 LCD on/off
Fn+F8 LCD/CRT switch display
Fn+F9 TouchPad Lock
Fn+F10 Volume on/mute
Fn+F11 Volume down
Fn+F12 Volume up
Fn+Num Lk: Scroll Lock on/off
Fn+Space Power 4Gear eXtreme
Fn+C Splendid
Fn+T Power4Phone
Fn+V Camera capture
Fn+↑: Stop
Fn+↓: Play/Pause
Fn+ ←：Skip to Previous Track
Fn+ →：Skip to Next Track
Audio
Built-in Azalia compliant audio chip, with 3D effect & full duplex
Built-in speaker and microphone
KeyBoard
18.5 mm full size 88key with MS-Windows function keys
Battery Pack & Life
6 cells
AC Adapter
Output: 19 V DC, 4.7 A, 90W
Input 100 -240 V AC, 50/60 Hz universal
Dimension & Weight
31.6 x 23.27 x 2.7 ~ 3.52 cm (W x D x H)
1.99 kg, (with 3 cell battery)
Security
BIOS Booting / HDD User Password Protection and security lock
Kensington lock hole
TPM(Trusted Platform Module) V1.2
Fingerprint(optional)
Supplied Accessories
Optical Mouse
Carrying bag
Multimedia Software
ASUSDVD 6-in-1
Preinstall PowerDVD v7 (*For Basic & Business only)
Preinstall Power2Go v5
Bundle ASUSDVD 6-in-1 CD (*For Basic & Business only)
Bundle Power2Go CD (*For Premium & Ultimate)
Note: Premium & Ultimate are with MCE from Windows Vista support
Virus & Tool Software
Norton™ Internet Security 2008
Adobe Acrobat Reader 8.0
NERO 7 Essentials
Operating System Recovery Disk
Recovery Hard Drive Hidden Partition
ASUS Utility
Asus Win flash for BIOS and Driver live Update
ASUS SmartLogon
Asus Live Update
Asus Multi-Frame
Power 4 Phone
Asus NB Probe +
ASUS Life Frame 3
ASUS Wireless Console
ASUS Security Protect Manager(ASPM)
Warranty & e-support
2-year limited global hardware warranty
*different by country
1-year battery pack warranty
30days Zero Bright Dot LCD
On-line problem resolution through web interface (BIOS, Driver update)
OS (Microsoft Windows Vista) install/uninstall consultation
Bundled software install/uninstall consultation
ASUS software supporting
Model
F6Ve-B1
Operating System
Genuine
Windows Vista® Home Premium
Dimension & Weight
Color / Net Weight / Dimension (W*D*H)
Black / 4.3lbs / 12.2"*9"*1.2"-1.4"
Office Ready
Pre-installed 60-day trial of Microsoft Office 2007
OS Compatibility
Windows Vista
*Windows XP driver is not available
Intel, the Intel logo, Centrino and the Centrino logo, Intel Core and Core
Inside, are trademarks or registered trademarks of Intel Corporation or its
subsidiaries in the United States and other countries.
* All specifications are subject to change without notice. Please check with
your supplier for exact offers. Products may not be available in all
markets.
* PCB color and bundled software versions are subject to change without
notice.
* Brand and product names mentioned are trademarks of their respective
companies.
