ASUS N20A-D1: Intel Core 2 Duo T6400 (2.0GHz) Processor, 12.1" WXGA (1280x800) LED Display, 4GB DDR2 Memory, 320GB Hard Drive, DVD Super Multi Drive, Microsoft Windows Vista Home Premium
DDR2 800 MHz SDRAM, 2 x SODIMM socket for expansion up to
4GB SDRAM
*Due to the 32-bit operation system's limitation, only 3GB
will show up with a 4GB memory. The 64-bit operating system
will not have this issue. For more information, please check
Microsoft's support site:
http://support.microsoft.com/kb/946003
Display
12.1" WXGA Color-Shine (Glare-type)
Video Graphics & Memory
Embedded Intel® GMA X4500HD Gfx
Hard Drive
2.5" 9.5mm SATA
500GB,5400rpm
320GB,5400rpm, 7200rpm
250GB,5400rpm, 7200rpm
160GB,5400rpm, 7200rpm
80GB/160GB,S.S.D. SATA HDD
Optical Drive
5.25" , 12.7mm
DVD Super Multi
Card Reader
8 in 1 card reader, SD,MMC,MS,MS-Pro,mini SD w/ adapter,MS-Duo,MS-Pro
Duo via adapter
Video Camera
1.3 Mega Pixel web camera
Fax/Modem/LAN/WLAN
Integrated Intel® High Definition Audio chip (Azalia) and
10/100/1000 BaseT
Built-in Bluetooth™ V2.0+EDR (optional)
3G/3.5G Antenna support(in selected territories)
Intel® Wireless WiFi Link 5100 ABGN
LED Status Indicator
Power-on/Suspend
Battery Charging/full/low
Storage device access
Capital Lock
Wireless on status indicator(optional)
Bluetooth on status indicator(optional)

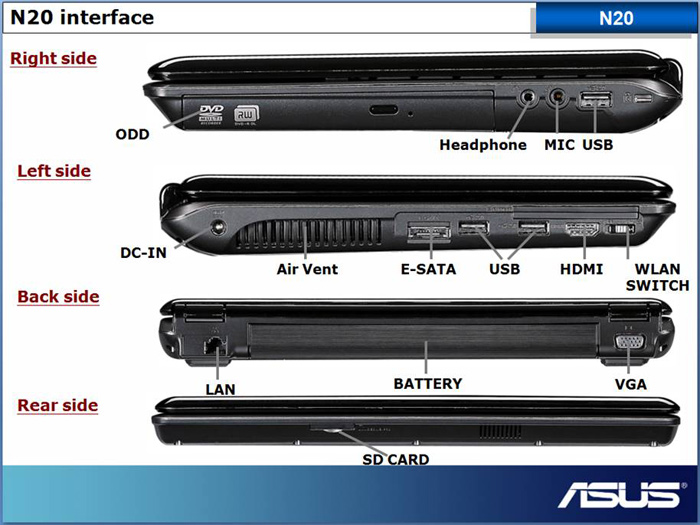

Interface
1 x Express card
1 x Microphone-in jack
1 x Headphone-out jack
1 x VGA port/Mini D-sub 15-pin for external monitor
3 x USB 2.0 ports
1 x RJ45 LAN Jack for LAN insert
1 x HDMI
1 x WLAN On/Off Switch
1 x E-SATA
Hot Keys
Function Keys:
Fn+F1 Suspend switch
Fn+F2 WLAN switch
Fn+F2 Bluetooth switch
Fn+F3 Access to the E-mail
Fn+F4 Access to the Internet
Fn+F5 Brightness down
Fn+F6 Brightness up
Fn+F7 LCD on/off
Fn+F8 LCD/CRT switch display
Fn+F9 TouchPad Lock
Fn+F10 Volume on/mute
Fn+F11 Volume down
Fn+F12 Volume up
Fn+Space Power 4Gear +
Fn+C Splendid
Fn+V Camera capture
Fn+↑: Stop
Fn+↓: Play/Pause
Fn+ ←：Skip to Previous Track
Fn+ →：Skip to Next Track
Audio
Built-in Azalia compliant audio chip, with 3D effect & full
duplex
Built-in speaker and microphone

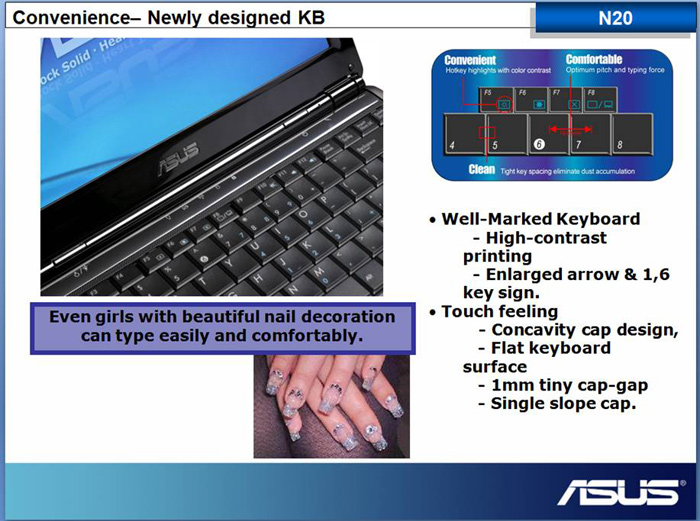

Keyboard
17.5mm full size 83 Key with MS Windows function keys
Battery Pack & Life
3/6/9 cells: 2600/5200/7800 mAh,
AC Adapter
Output: 19 V DC, 3.42 A, 65W
Input: 100-240V V AC, 50/60 Hz universal
Dimension & Weight
30.3 x 22.5 x 3.10 cm (W x D x H)
1.85 kg (with 3 cell battery)
Security
BIOS Booting / HDD User Password Protection and security
lock
Kensington lock hole
TPM(Trusted Platform Module) V1.2 (optional)
Supplied Accessories
Optical Mouse
Carrying bag
Multimedia Software
ASUSDVD V7.0 ( *For Basic & Business only)
Power Director V5.0 (*For Basic & Business only)
Medi@Show V3.0 (*For Basic & Business only)
Asus Win flash for BIOS and Driver live Update
ASUS CopyProtect
ASUS SmartLogon
ASUS Net 4 switch
Asus Power4Gear eXtreme
Asus Live Update
Asus Multi-Frame
Asus NB Probe +
ASUS Life Frame 3
ASUS Wireless Console
Asus Data Security Management(ADSM)
ASUS Splendid
Warranty & e-support
2-year limited global hardware warranty
*different by country
1-year battery pack warranty
On-line problem resolution through web interface (BIOS,
Driver update)
OS (Microsoft Windows Vista) install/uninstall consultation
Bundled software install/uninstall consultation
ASUS software supporting
OS Compatibility
Windows Vista/Windows XP
Intel, the Intel logo, Centrino and the Centrino logo, Intel Core
and Core Inside, are trademarks or registered trademarks of Intel
Corporation or its subsidiaries in the United States and other
countries.
All specifications are subject to change without notice. Please
check with your supplier for exact offers. Products may not be
available in all markets.
PCB color and bundled software versions are subject to change
without notice.
Brand and product names mentioned are trademarks of their
respective companies.
