Smart Technology - ASUS Super Hybrid Engine (S.H.E)
Super Hybrid Engine (SHE) consists of the
Power4 Gear Hybrid application and the Energy Processing Unit (EPU).
Power4 Gear Hybrid facilitates the deployment and usage of power
according to the users’ preferences in relation to the specific tasks
that they need to perform, while the EPU accurately detects the users’
power requirements and makes the necessary power adjustments. As a
result the SHE provides an extension of battery life of up to 35%*~53%*.
A Cleaner and Fresher Working Environment with Air Ionizer for Better
Health
Air Ionizer helps to clean the air around the
user of allergens and germs, and also promotes air-flow and circulation,
providing the user with a cleaner and fresher environment for work and
leisurely pursuits.

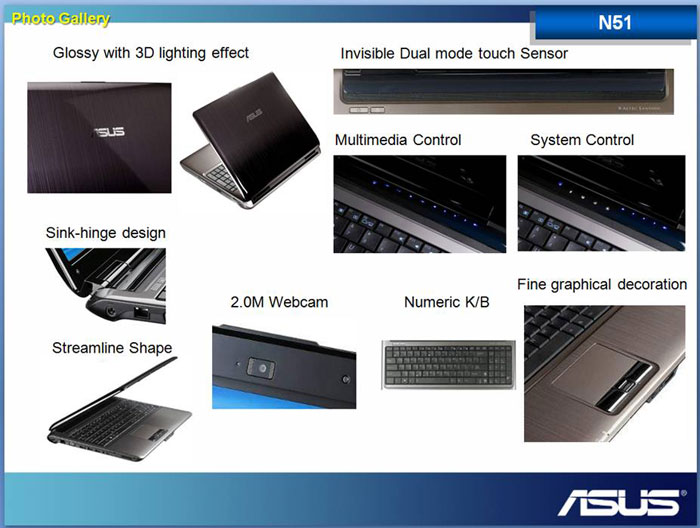

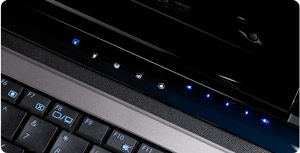

Intuitive Touch-capacitive Multimedia Controls for Ease of Use
A dual mode, touch sensitive control bar lets
you enjoy multimedia entertainment easily and serves as an intuitive and
convenient point of multimedia control for instantaneous multimedia
enjoyment.

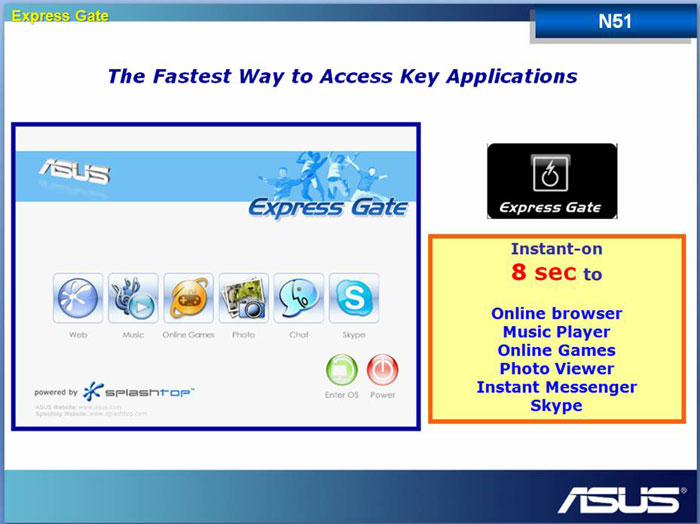

Instantaneous Access to Commonly Used Programs with Express Gate
Express Gate allows users to boot up in 8
seconds*, granting them instantaneous access to a built-in operating
system that runs commonly-used applications such as Skype™, a music
player, an email client and an Internet browser.
Centrino Logo, Core Inside, Intel, Intel Logo,
Intel Core, Intel Inside, Intel Inside Logo, Intel Viiv, Intel vPro,
Itanium, Itanium Inside, Pentium, Pentium Inside, Viiv Inside, vPro
Inside, Xeon, and Xeon Inside are trademarks of Intel Corporation in the
U.S. and other countries.
* All specifications are subject to change without notice. Please check with
your supplier for exact offers. Products may not be available in all
markets.
* PCB color and bundled software versions are subject to change without
notice.
* Brand and product names mentioned are trademarks of their respective
companies.
* All specifications are subject to change without notice. Please check with
your supplier for exact offers. Products may not be available in all
markets.
* PCB color and bundled software versions are subject to change without
notice.
* Brand and product names mentioned are trademarks of their respective
companies.

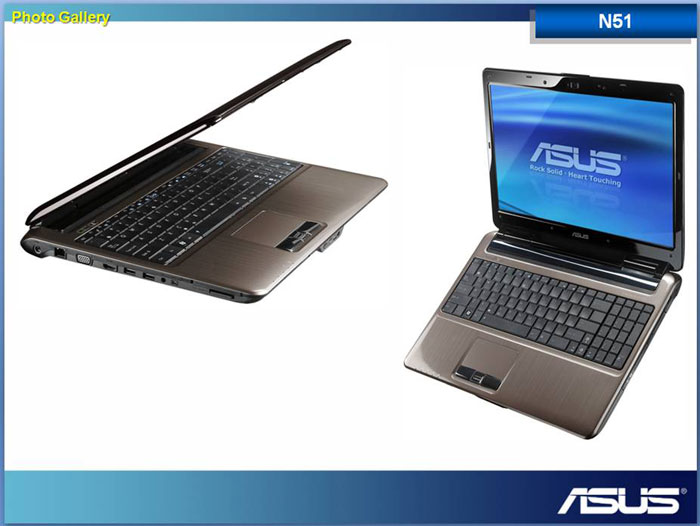

Asus N51Vf Series Notebooks
Specifications
Processor & Cache Memory
Intel® Core™2 Duo Processor T9550, 2.66GHz or above
8-in-1 card reader, SD,MMC,MS,MS-Pro,mini SD w/ adapter,MS-Duo,MS-Pro
Duo via adapter
Video Camera
2.0 Mega Pixel web camera
(Optional)
Fax/Modem/LAN/WLAN
Integrated 802.11 a/g/n
Built-in Bluetooth™ V2.1+EDR (optional)
Intel® Wireless WiFi Link 5100 ABGN
Intel® WiMAX/WiFi Link 5150
10/100/1000 Base T
LED Status Indicator
HDD
Power-on/Suspend
Battery Charging/full/low
Storage device access
Capital / Scroll / Number Lock
Wireless on status indicator (optional)
Bluetooth on status indicator(optional)

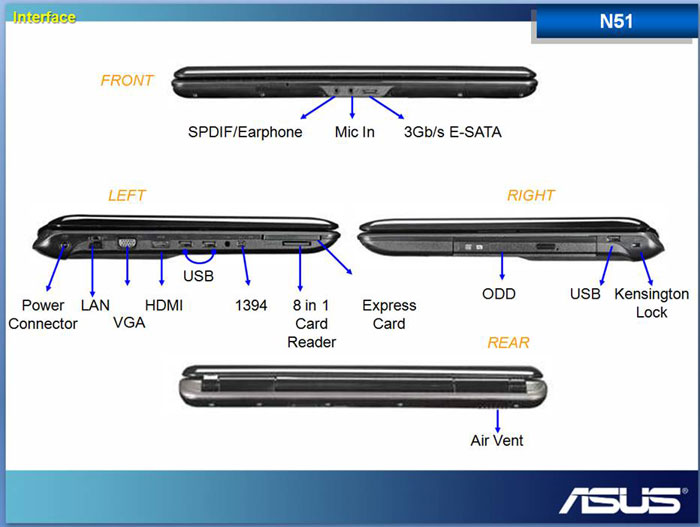

Interface
1 x Express card
1 x Microphone-in jack
1 x Headphone-out jack (S/PDIF)
1 x VGA port/Mini D-sub 15-pin for external monitor
3 x USB 2.0 ports
1 x IEEE 1394 port
1 x RJ45 LAN Jack for LAN insert
1 x HDMI
1 x WLAN On/Off Switch
1 x E-SATA
1 x RF in
Hot Keys
Function Keys:
Fn+F1 Suspend switch
Fn+F2 WLAN switch
Fn+F2 Bluetooth switch
Fn+F3 Access to the E-mail
Fn+F4 Access to the Internet
Fn+F5 Brightness down
Fn+F6 Brightness up
Fn+F7 LCD on/off
Fn+F8 LCD/CRT switch display
Fn+F9 TouchPad Lock
Fn+F10 Volume on/mute
Fn+F11 Volume down
Fn+F12 Volume up
Fn+Space Power 4Gear
Fn+C Splendid
Fn+T Power4Phone
Fn+V Camera capture
Fn+↑: Stop
Fn+↓: Play/Pause
Fn+ ←：Skip to Previous Track
Fn+ →：Skip to Next Track
Audio
Support Audio Jack Detect for Vista Basic Logo
Support Audio CODEC criteria for Vista Premium Logo
Built-in Azalia compliant audio chip, with 3D effect & full
duplex
Built-in speaker and microphone
SoundBlaster Pro Compatible
KeyBoard
19mm full size 88 Key with MS Windows function keys
Numberic Keyboard
Battery Pack & Life
6 cells: 4800 mAh,
AC Adapter
Output: 16 V DC, 4.7 A, 90W
Input:100-240V V AC, 50/60 Hz universal
Dimension & Weight
36.9 x 27.6 x 2.90~4.30 cm (W x D x H)
2.95 kg, (with 6 cell battery)
Security
BIOS Booting / HDD User Password Protection and security
lock
Kensington lock hole
TPM(Trusted Platform Module) V1.2
(optional)
Fingerprint
Supplied Accessories
Optical Mouse
Carrying bag
Multimedia Software
Power Director V5.0 (*For Basic & Business only)
Medi@Show V3.0 (*For Basic & Business only)
ASUSDVD 6-in-1
WinDVD8 BD
Virus & Tool Software
Norton™ Internet Security 2008
Adobe Acrobat Reader 8.0
NERO 8 Essentials
Operating System Recovery Disk
Recovery Hard Drive Hidden Partition
Power2Go
ASUS Utility
Asus Win flash for BIOS and Driver live Update
ASUS CopyProtect

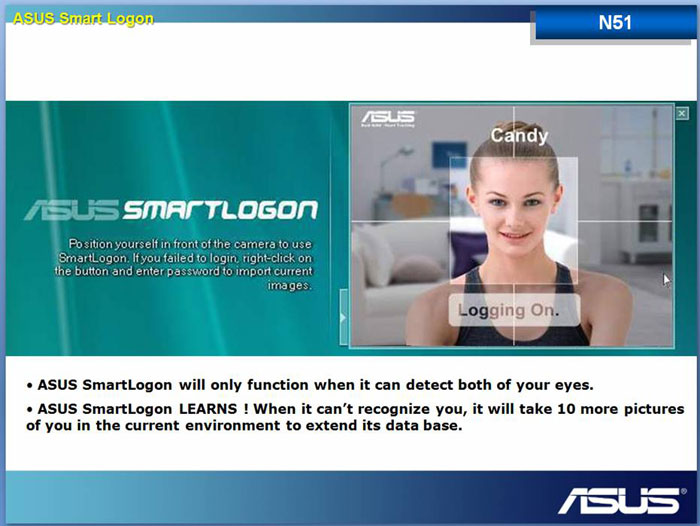

ASUS SmartLogon
ASUS Net 4 switch
ASUS Power4Gear+
Asus Live Update
Asus Multi-Frame
Asus NB Probe +
ASUS Life Frame 3
ASUS Wireless Console
Asus Data Security Management(ADSM)
Virtual Camera
ASUS Splendid
ASUS Express Gate
TPM Utility(with TPM Pre-installed)
ASUS Setting Center
Green Compliance
RoHS
Warranty & e-support
2-year limited global hardware warranty
*different by country
1-year battery pack warranty
On-line problem resolution through web interface (BIOS,
Driver update)
OS (Microsoft Windows Vista) install/uninstall consultation
Bundled software install/uninstall consultation
ASUS software supporting
OS Compatibility
Windows Vista/Windows XP
Model
N51Vf-A1
