DDR2 800 MHz SDRAM, 2 x SODIMM socket for expansion up to 8GB SDRAM
*Due to the 32-bit operation system's limitation, only 3GB will show up with
a 4GB memory. The 64-bit operating system will not have this issue. For more
information, please check Microsoft's support site:
http://support.microsoft.com/kb/946003
Display
18.4" (1920x1080) Full HD 1080P, Color-Shine (Glare-type),Asus Splendid
Video Intelligent Technology
Video Graphics & Memory
NVidia GT 220M 1GB DDR2 VRAM
Hard Drive
Dual HDD:
2.5" 9.5mm SATA
1 Terra Byte(500Gx2),5400rpm
640G(320Gx2),5400rpm
500G(250Gx2),5400rpm;
640G(320Gx2),7200rpm
Single HDD:
2.5" 9.5mm SATA
300GB,5400rpm
250GB,5400rpm
Optical Drive
5.25" , 12.7mm
DVD Super Multi Double Layer:
Blu-Ray DVD Combo
Card Reader
8 in 1 card reader, SD,MMC,MS,MS-Pro,xD,mini SD w/ adapter,MS-Duo,MS-Pro
Duo via adapter
Video Camera
1.3 Mega Pixel web camera
With Auto Focus Technology
Fax/Modem/LAN/WLAN
Integrated V.92 MDC Fax/Modem, with AC-Link Version. 2.1 Compliant
10/100/1000 Base T
Integrated 802.11 b/g/n
Built-in Bluetooth™ V2.1+EDR

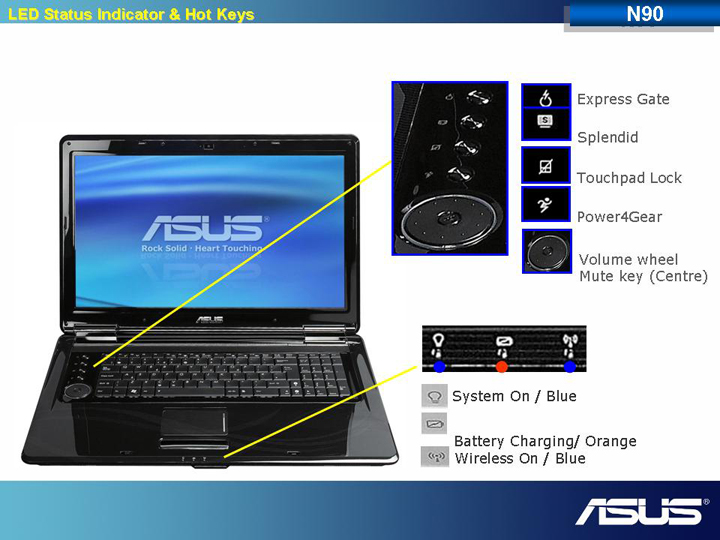

LED Status Indicator
Power-on/Suspend
Battery Charging/full/low
Storage device access
Capital / Scroll / Number Lock
Wireless on status indicator
Bluetooth on status indicator

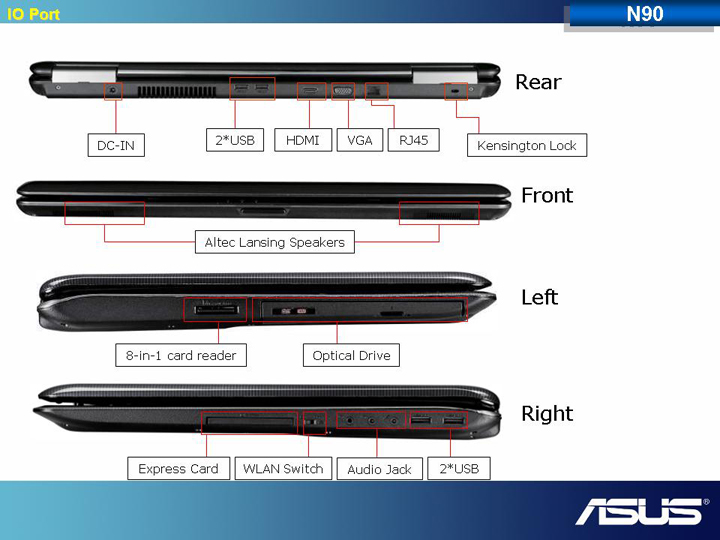

Interface
1 x Microphone-in jack
1 x Headphone-out jack (S/PDIF)
1 x VGA port/Mini D-sub 15-pin for external monitor
4 x USB 2.0 ports
1 x IEEE 1394 port
1 x RJ45 LAN Jack for LAN insert
1 x HDMI
1 x CIR for remote controller
11 x E-SATA
1 x RF in (W/ TV Sku)
Hot Keys/td>
Function Keys:
Fn+F1 Suspend switch
Fn+F2 WLAN switch
Fn+F2 Bluetooth switch
Fn+F5 Brightness down
Fn+F6 Brightness up
Fn+F7 LCD on/off
Fn+F8 LCD/CRT switch display
Fn+F10 Volume on/mute
Fn+F11 Volume down
Fn+F12 Volume up
Fn+↑: Stop
Fn+↓: Play/Pause
Fn+ ←：Skip to Previous Track
Fn+ →：Skip to Next Track
ASUS CopyProtect

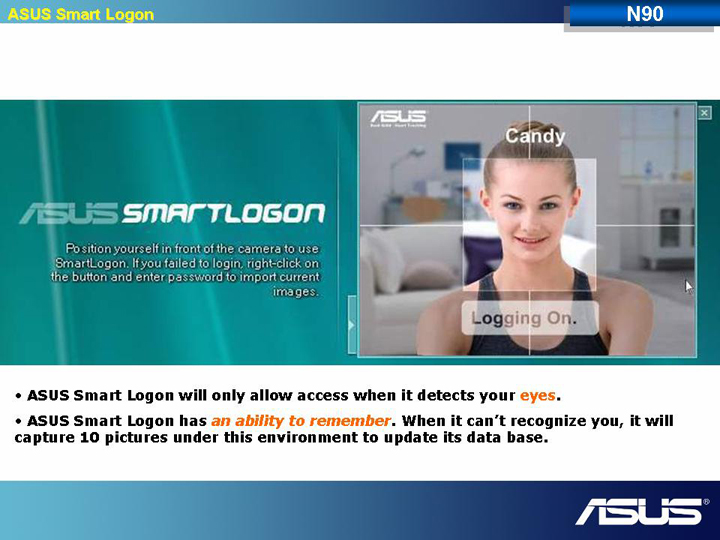

ASUS SmartLogon
Asus Live Update
Asus NB Probe +
ASUS Life Frame 3
ASUS Wireless Console 2
ASUS Splendid

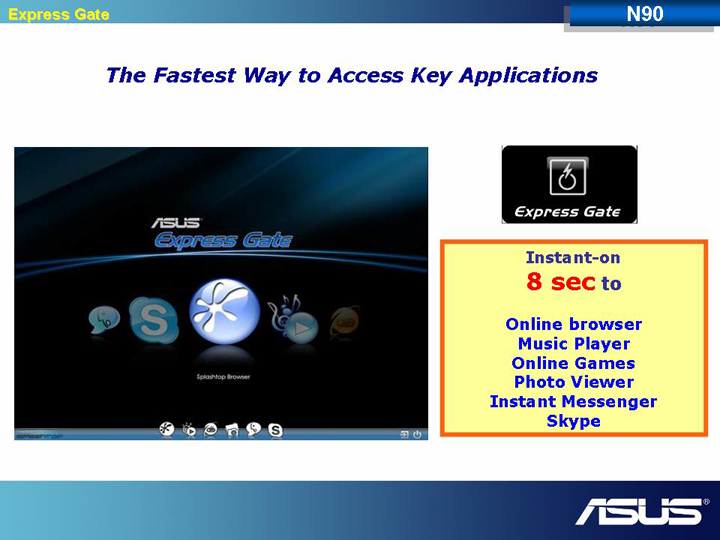

ASUS Express Gate
ASUS Zoom In
ASUS Turbo Gear
ASUS WinFlash
Warranty & e-support
2-year limited global hardware warranty
*different by country
1-year battery pack warranty
On-line problem resolution through web interface (BIOS, Driver update)
OS (Microsoft Windows Vista) install/uninstall consultation
Bundled software install/uninstall consultation
ASUS software supporting
Built-in TV-Tuner
Hybrid TV Tuner (Analog+DVB-T) (Optional)
A Multimedia Powerhouse for Maximum Audio and Visual Entertainment
The W90 is equipped with 6 Altec Lansing speakers shaped in the form of a
sports car’s heating vents, with 5 speakers and an additional integrated
subwoofer, and powered the 2nd generation Dolby™ Home Theater for symphonic
audio reproduction. A seamless full HD 1080p, 18.4” widescreen display with
a golden aspect ratio of 16:9 provides high definition cinematic images that
are a feast to your eyes. Full HD also means that you can enjoy your videos,
games and images in pristine clarity and vibrancy while maintaining maximum
portability. This fantastic combination of audio and visual enjoyment to
deliver a mind-blowing mix of high definition audio and visual entertainment
can be easily controlled via AI Touch Media, an intuitive control panel
located beside the keyboard that combines hardware and a software interface
to control videos, photographs, music, and various other forms of
multimedia.
Absolute Power for Maximum Performance and Productivity
The W90 is the world’s first notebook equipped with a 3 x SO-DIMM
mainboard design and a maximum RAM capacity of 6GB of DDR2-800 memory. With
graphical performances attaining a 3DMark (2006) score of 15,000, powered by
the latest graphics options ATI Mobility Radeon™ HD 4870 (dual graphics),
ATI? Mobility Radeon™ HD3850 (dual graphics) or the NVIDIA? GeForce™ 9800M G
and coupled with an Intel? Core™2 Duo processor, the W90 takes on intensive
multimedia and multitasking with ease. Up to 640GB of storage capacity from
dual hard disk drives means you can store more documents or multimedia for
the road. The ASUS W90 also comes equipped with the Turbo Gear function,
which allows you to overclock your system to significantly increase its
performance by up to 25%*, so that you can enjoy audio and video playback
while gaming and web-browsing simultaneously.
Connectivity, Communications and Peace of Mind On The Move
Connect to your world wherever you may be with an integrated 2.0
megapixel webcam and built-in 802.11n connectivity that enable ‘real-time’
video conferencing and Internet browsing. Keeping your documents safe are a
built-in biometric scanner and the proprietary ASUS Trusted Platform Module
(TPM) which is a hardware solution that holds computer-generated keys for
encryption, helping users avoid attacks by hackers looking to capture
passwords and encryption keys to sensitive data. *Actual performance figures differ and are dependent on
product specifications and usage.
Exquisite Design for Style on the Move
A breathtaking experience awaits you as you glide your fingers across the
W90 brushed aluminum top cover. Lift the hood and stand in awe of the
majesty that is the flushed high definition widescreen LCD display and
webcam, similar to a top-of-the-line flat screen television. Aft of the
keyboard lies high definition stereo speakers designed to resemble the
heating vents of a high performance super car. These impassioned design
features bring style and class wherever you go.
