Combining outstanding performance with an affordable price, the COMPAL
JHT01 features state-of-art components that deliver the ultimate high definition
visual experience along with a host of other functions suitable for both
home and office use.
•
Latest Intel Centrino 2 Processor Technology
•
Intel Integrated Graphics w/ HD Audio built-in
•
HDMI Port supports full 1080P HD output
•
5.3lbs w/ 6-cell Battery; Built-in 2.0MP Video Camera
Mfg Part No.: CompalJHT01 Stock Status: In Stock - Limited
Powered By Latest Intel®Centrino®2
Processor Technology
Kick your mobile world into overdrive with the new
Compal JHT01 notebook featuring the latest Intel Centrino 2 processor technology (Montevina platform).
The system, complete with new Intel Wi-Fi Link 5100AGN
802.11n wireless LAN connection, also gives you faster
access to the jaw dropping speeds of the JHT01 with
optional 1GB/2GB/4GB Intel® Turbo Memory, which lets you
boot up faster and accelerates load times of frequently
used applications.
Uncompromised Graphic Solution
Experience the interface of the future with the most
advanced technology of today as the JHT01 utilizes the
Integrated Intel Cantina Graphics Media Accelerator, 256MB shared from system memory.
This powerful video engine provides users with
a rich, new media experience to deliver smooth full
1080p HD video playback. Intel® GMA comes with
Intel® Clear Video Technology, a combination of video
processing hardware and software technologies designed
to enhance the visual experience.

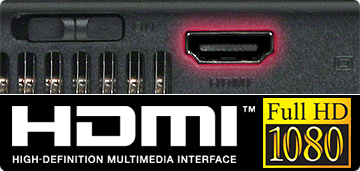

High-Definition Multimedia Interface
Turn your HDTV into a brilliant high resolution
computer display with our HDMI port that supports full
1080P HD output allowing you to connect to any 1080P
HDTV at full 1920x1080 16:9 HD resolutions. Your TV will
become a first-rate PC monitor or allow you to enjoy
movies saved on your computer in full HD on a larger
screen.

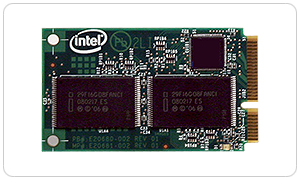

Redline speed with Intel Turbo Memory
Access the speed and power of the JHT01 in the blink
of an eye with the optional Intel® Turbo Memory
Technology. The Compal JHT01 incorporates an innovative
design by using NAND flash memory to increase the
performance on application load time and shorten the
time it takes for a computer to power up. You’ll be
amazed at the dramatic improvement in your load times as
well as the increased power savings you will experience
if the optional module card is installed.

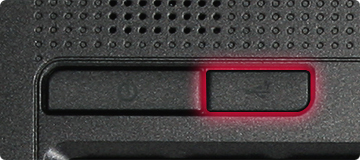

Power or Charge Mobile Peripherals On The Go
Power up your peripherals without turning on your
notebook with yet another unique feature of the JHT01 –
the Power Source USB ports. By pressing the Power USB
button, the system USB port supplies a total 3A power
source for your external mobile peripheral devices
without turning on your notebook.

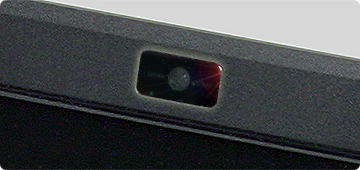

Face to Face Across the Globe
Enter the world of online communication and take
advantage of the built-in high resolution 1.3 megapixel
video camera to participate in a video conference, or
simply chat with your friends face-to-face no matter how
far apart you may be.
*
Celeron, Celeron Inside, Centrino, Centrino Inside, Core Inside,
Intel, Intel Logo, Intel Atom, Intel Atom Inside, Intel Core,
Intel Inside, Intel Inside Logo, Intel Viiv, Intel vPro,
Itanium, Itanium Inside, Pentium, Pentium Inside, Viiv Inside,
vPro Inside, Xeon, and Xeon Inside are trademarks of Intel
Corporation in the U.S. and other countries. All other company
and/or product names mentioned herein are trademarks and/or
registered trademarks of their respective companies.
*
Specifications are subject to change without notice.
Compal JHT01, HT01 Series Detail Specifiations
Processor
IntelCore Duo
Processor T3400 (2.16GHz), 1MBL2 Cache, 667FSB, 478uFC-PGA, Socket P
IntelCore2
Duo Processor T5450 (1.66GHz)/ T5550 (1.83GHz)/ T5750(2.0GHz), 2MBL2 Cache,
667FSB, 478uFC-PGA, Socket P
IntelCore2
Duo Processor T5800 (2.0GHz), 2MBL2 Cache, 800FSB, 478uFC-PGA, Socket P
IntelCore2 Duo Processor T7500 (2.20GHz),
4MB L2 Cache, 800FSB
32nm IntelCore2 Duo Processor T6400 (2.0GHz), 2MB L2 Cache, 800FSB
45nm IntelCore2 Duo Processor
P8400 (2.26GHz) / P8600 (2.40GHz) / P8700 (2.53GHz), 3MB L2 Cache,
1066FSB, 478uFC-PGA, Socket P
45nm IntelCore2 Duo Processor
T9400 (2.53GHz) / P9600 (2.66GHz), 6MB L2 Cache, 1066FSB, 478uFC-PGA,
Socket P
45nm IntelCore2 Duo Processor T9550 (2.66GHz), 6MB L2 Cache, 1066FSB, 478uFC-PGA,
Socket P
Core Logic
Intel®GM45
Chipset + ICH9M
Memory
Supports Dual Channel DDRII SDRAM
Two 200Pin SODIMM sockets
Expandable up to 4GB DDRII 667MHz / 800MHz
Intel® Integrated Intel Cantiga integrated 3D/2D Graphics Media Accelerator
Share memory architecture up to 256MB
Microsoft®DirectX®10
Compatible
HDCP supported
Storage
1 Detachable 2.5" 9.5mm (H) SATA Hard Disk Drive
1 12.7mm (H) Optical Drive Bay, SATA Interface
Interchangeable with DVD±R/RW Combo drive, Blu-ray/DVD±R/RW Combo Drive
Audio System
Realtek ALC268
2 channel HD Audio
Compliant with Universal Audio Architecture
Microphone Array supported (Software solution by Vista)
2 Built-in Microphone
2 Built-in Speakers
Pointing Device
Integrated Touchpad
Keyboard
Full Sized Keyboard
Windows key, Application Key
Integrated with Hot Keys for LCD Brightness, Suspend, Panel/CRT Display
Control button for Power USB (workable in system power off mode)
Wireless on/off Switch for integrated wireless LAN
I/O Ports
1 HDMI output Port
1 VGA Port, 15 pins
3 USB 2.0 Ports (all are with Power USB feature)
1 Headphone Jack
1 Microphone Jack
1 RJ-45 LAN (10/100Mbps)
1 RJ-11 Modem
Built-in 56K MDC modem with V.90 & V.92 compliant
Built-in 10/100 Mpbs Ethernet LAN
Bluetooth™ V2.0 + EDR module (optional)
Intel®5100AGN
802.11a/b/g/n wireless LAN (Intel Shirley Peak)(two antennas).
Security
Kensington®Lock
Power System
1 Removable 6 cells smart Lithium-Ion battery pack, 4800mAH 53.3Whr
Battery life: (Tested by Mobilemark2007), 3.3 hrs (typical) with 6-cell/4800mAh battery
Full Range AC-in 90~264V, 47~63Hz, DC output: 65W with 19V AC Adapter
Power Management
System Management Mode (SMM)
Suspend to HDD / DRAM
Full features of SMI Power Management, Doze, Sleep,
Suspend/Resume Mode
Physical Characteristic
5.95 LBs with Battery Pack
14.11" (w) x 10.2" (d) x 1" ~ 1.54" (h)
Other Features
Built-in 1.3M Digital Video Camera
Optional Modules
Inte®l TurboMemory Module 1GB/2GB/4GB (Intel Robson Technology)
External USB ATSC HDTV / ANALOG TV-Tuner with Remote
External USB Floppy Drive
Specifications are subject to change without notice
