Compal PBL20 Custom Built Gaming Laptop
Advantages:
•
Combining outstanding performance with an affordable price, the PBL20 features
DirectX 11 capable
Intel UMA HD Graphics that deliver the ultimate high definition visual
experience along with a host of other functions suitable for entertainment
on-the-go.
Trusted Platform Module: TPM 1.2 for Data Security
Built-in 1.3M Pixel High Resolution Webcam for Wire-free Video
Communication
Elegant Surface with Shiny IML Coating
HDMI and Hybrid USB 2.0 / eSATA Interface
Combining outstanding performance with an
affordable price, the PBL20 features state-of-the-art components
that deliver the ultimate high definition visual experience along
with a host of other functions suitable for both home and office
use. Giving you the most bang for the buck, the unit features the
new 2011 Intel Core i7 processor; a vibrant 15.6-inch HD LED display
optimized for movies with a 16:9 aspect ratio; dual channel DDR3
system memory; Web Cam; Power Source USB Ports; and more. These high
performance components come packaged in a stylish case that appeals
to both the power user and the business professional.
Powered By New 2011 2nd Generation IntelCore
i3/i5/i7Processor
With faster, intelligent, multi-core technology that applies
processing power where its needed most, the PBL20 powered by new
2011 Intel Core i3/i5/i7 mobile processor delivers an
incredible breakthrough in gaming performance. The unit relies on
the combination of Intel Turbo Boost technology and Intel
Hyper-Threading technology to activate full processing power exactly
where and when you need it most.

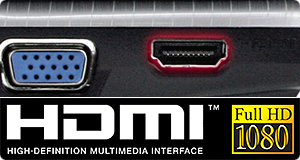

High-Definition Multimedia Interface
Turn your HDTV into a brilliant high resolution computer display
with our HDMI port that supports full 1080P HD output allowing you
to connect to any 1080P HDTV at full 1366x768 16:9 HD resolutions.
Your TV will become a first-rate PC monitor or allow you to enjoy
movies saved on your computer in full HD on a larger screen.

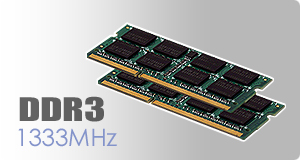

Enhance Performance with DDR3 System Memory
Your system's performance will never disappoint thanks to the
latest DDR3 1066/1333MHz system memory providing greater memory
bandwidth for performance that will never lag behind.
Enhance Your Movie Watching Experience with Blu-ray
Technology
Enjoy your favorite Hollywood blockbuster movies in
high-definition anywhere, anytime with the PBL20 BR Edition playing Blu-ray
Disc movies. The PBL20 Blu-ray drive not only reads Blu-ray
Disc it also capable of reading and writing to most DVD & CD formats
in the future.

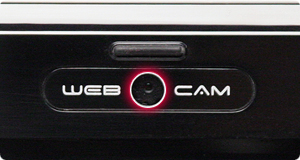

Face to Face Across the Globe
Enter the world of online communication and take advantage of the
built-in high resolution 1.3 megapixel video camera to participate
in a video conference, or simply chat with your friends face-to-face
no matter how far apart you may be.
Why wait for a traditional hard disk drive to spin up? Unlike
traditional hard disk drives, Intel solid-state drives have no moving
parts, resulting in a quiet, cool, highly rugged storage solution that
also offers faster system responsiveness, and the lower power needs of
Intel SSDs translate to longer battery life and lighter notebooks.
Higher performance with more durability means you can be truly mobile
with confidence.
*
Celeron, Celeron Inside, Centrino, Centrino Inside, Core Inside, Intel,
Intel Logo, Intel Atom, Intel Atom Inside, Intel Core, Intel Inside,
Intel Inside Logo, Intel Viiv, Intel vPro, Itanium, Itanium Inside,
Pentium, Pentium Inside, Viiv Inside, vPro Inside, Xeon, and Xeon Inside
are trademarks of Intel Corporation in the U.S. and other countries.
NVIDIA marks and logos are trademarks or registered trademarks in the
United States and other countries and are used under license from NVIDIA
Corporation. All other company and/or product names mentioned herein are
trademarks and/or registered trademarks of their respective companies.
*
Specifications are subject to change without notice.
Sager PBL20 Series Detail Specifiations
Processor
Core i7-2620QM Dual Core 2.0GHz 6MB 1333 and up to i7-2820QM 2.3GHz 6MB 1333
Intel 2nd Generation Core i3/i5/i7 Processor
Core Logic
Intel HM55 Chipset + ICH9M
Memory
Supports Dual Channel DDR3
Two 204Pin SODIMM sockets, support for DDR3 1333MHz
Expandable up to 8GB (32
bit OS editions have a memory limitation of 2.8 GB. Other hardware or
application limitations may further prevent use of all installed memory.
Windows 7 / Vista 64bit is required for memory configurations of 4GB and
above.)
BIOS
4MB Flash ROM BIOS
Display
15.6" Full HD 16:9 LED (1366x768) Display with Super Clear Type screen
Graphics Processor
Integrated Graphic share system memory
Storage
1 Detachable 2.5" 9.5mm (H) SATA Hard Disk Drive
1 12.7mm (H) Optical Drive Bay, SATA Interface
Interchangeable with DVD Burner Combo drive, Blu-ray/DVD Burner Combo Drive
Audio System
High Definition Audio Interface
2 Built-in Microphone support
2 Built-in Speakers
Pointing Device
Integrated Touchpad
Integrated Disable/Enable button for touchpad
Keyboard
Full Sized Keyboard with 102 key emulation without stick-point
Windows Hot keys
Integrated with Hot Keys for LCD Brightness, Suspend, Panel/CRT Display, Volume
Control
Control buttons for Power USB, WoW Video & Audio, Program DJ to launch
application
I/O Ports
USB 2.0 x 2 (w/ Power USB feature), HDMIx1,
RGB: VGA port x 1
Microphone-in x 1,
Headphone-out x1,
DC-in jack ,x 1
Kensington lock x 1
3-in-1 Flash Card Reader(SD/MMC/MS) x 1
Internal microphone x 1
RJ45 x 1
ESATA+USB x 1
Slots
3-in-1 Card Reader (SD/MMC/Ms)
1 MiniCard Slot for WLAN Module
Communication
Built-in Gigabit Ethernet LAN
Bluetooth™ V2.1 module
Internal 802.11b/g/n wireless LAN module or
IntelCentrinoAdvanced-N
6230 802.11b/g/n with BT 2.1 wireless LAN half mini card module
Security
KensingtonLock
Trusted Platform Module: TPM 1.2
Power System
1 Removable 6 cells smart Lithium-Ion battery pack, 4800mAh.
Full Range AC-in 90~264V, 47~63Hz, DC output: 90W with 19V AC Adapter
Power Management
System Management Mode (SMM)
Suspend to HDD / DRAM
Full features of SMI Power Management, Doze, Sleep,
Suspend/Resume Mode
Wake on LAN from S3
Physical Characteristic
5.95 LBs with Battery Pack
14.84" (w) x 10.04" (d) x 1.06~1.48" (h)
Other Features
Built-in 1.3M Digital Video Camera
On/Off Switch for wireless control
Optional Modules
External USB ATSC HDTV / ANALOG TV-Tuner with Remote
Specifications are subject to change without notice
