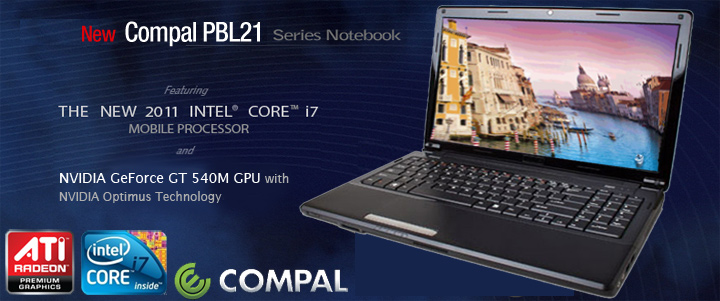

Compal PBL21 Custom Built Gaming Laptop
Advantages:
•
Combining outstanding performance with an affordable price, the PBL21 features
DirectX 11 capable NVIDIA GT540M graphics that deliver the
ultimate high definition visual experience along with a host of other
functions suitable for entertainment on-the-go.
•
New 2011 Intel 2nd Generation Core i7 Processor
•
NVIDIA GT520M w/1G VRAM for PBL21 (1366x768)
•
NVIDIA GT540M w/2G VRAM for PBL21-HD (1920x1080)
•
Support Blue-Ray playing and e-SATA/USB2.0 Combo
•
HDMI supports full 1080P HD output, Security TPM1.2
COMPAL PBL21 Gaming Laptop - 15.6" Full HD Display Intel
Platform (Discrete)
15.6-inch HD Display (1633x768) w/ LED backlight
15.6-inch Full HD Display (1920x1080) w/ LED backlight
Intel® 2nd Generation Processor - Intel Core i7-2630QM and up to Extreme Core i7-2960XM
NVIDIA GeForce GT540M with 1GB GDDR3 VRAM for HD (1633x768).
NVIDIA GeForce GT540M with 2GB GDDR3 VRAM for
Full HD (1920x1080).
Trusted Platform Module: TPM 1.2 for Data Security
Built-in 1.3M Pixel High Resolution Webcam for Wire-free Video
Communication
Elegant Surface with Shiny IML Coating
HDMI and Hybrid USB 2.0 / eSATA Interface
Combining outstanding performance with an
affordable price, the PBL21 features state-of-the-art components
that deliver the ultimate high definition visual experience along
with a host of other functions suitable for both home and office
use. Giving you the most bang for the buck, the unit features the
new 2011 2nd Generation Intel Core i7 processor and 802.11N Wireless LAN +
Bluetooth, the PBL21 has everything the power user needs to tackle
any number of tasks; premium graphics from NVIDIA GeForce 540M with
DirectX 11 support; a vibrant 15.6-inch Full HD LED display
optimized for movies with a 16:9 aspect ratio; dual channel DDR3
system memory; Web Cam; and more. These high
performance components come packaged in a stylish case that appeals
to both the power user and the business professional.
Powered By New 2nd Generation 2011 IntelCore
i7Processor Extreme Edition
With faster, intelligent, multi-core technology
that applies processing power where its needed most, the Force PBL21
powered by 2nd generation Intel Core i7 mobile processor Extreme
Edition delivers an incredible breakthrough in gaming performance.
The unit relies on the combination of Intel turbo Boost 2.0
technology and Intel Hyper-Threading technology with smart 8-way
multi-task processing to activate full processing power exactly
where and when you need it most.

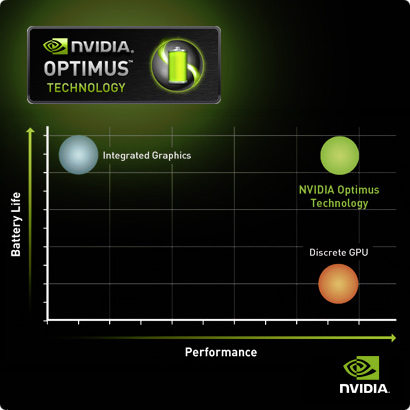

Hybrid Technology Offers Performance and Mobility
The days of having to give up battery life to
obtain high-end graphics performance are a thing of the past with
the PBL21 . For the most demanding applications, NVIDIA's new
Optimus Technology optimizes the performance of the PBL21 with a
dedicated NVIDIA GeForce GT 540M GPU with 2GB GDDR3 memory. For less
demanding applications, the GT 540M GPU is powered off and the
integrated Intel GMA graphics handles both rendering and display
calls to conserve power and provide the highest possible battery
life. Best of all, these transitions are executed instantaneously,
seamlessly and automatically without a hiccup. With the NVIDIA
Optimus-capable PBL21 , you can now enjoy watching a HD movie,
surfing the Web or playing the latest 3D with the assurance of
getting the best performance and the longest battery life.
High-Definition Multimedia Interface
Turn your HDTV into a brilliant high resolution computer display
with our HDMI port that supports full 1080P HD output allowing you
to connect to any 1080P HDTV at full 1920x1080 16:9 HD resolutions.
Your TV will become a first-rate PC monitor or allow you to enjoy
movies saved on your computer in full HD on a larger screen.
Enhance Performance with DDR3 System Memory
Your system's performance will never disappoint thanks to the
latest DDR3 1066/1333MHz system memory providing greater memory
bandwidth for performance that will never lag behind.
Enhance Your Movie Watching Experience with Blu-ray
Technology
Enjoy your favorite Hollywood blockbuster movies in
high-definition anywhere, anytime with the PBL21 BR Edition playing Blu-ray Disc movies. The
PBL21 Blu-ray drive not only reads Blu-ray
Disc it also capable of reading and writing to most DVD & CD formats
in the future.
Face to Face Across the Globe
Enter the world of online communication and take advantage of the
built-in high resolution 1.3 megapixel video camera to participate
in a video conference, or simply chat with your friends face-to-face
no matter how far apart you may be.
Why wait for a traditional hard disk drive to spin up? Unlike
traditional hard disk drives, Intel solid-state drives have no moving
parts, resulting in a quiet, cool, highly rugged storage solution that
also offers faster system responsiveness, and the lower power needs of
Intel SSDs translate to longer battery life and lighter notebooks.
Higher performance with more durability means you can be truly mobile
with confidence.
*
Celeron, Celeron Inside, Centrino, Centrino Inside, Core Inside, Intel,
Intel Logo, Intel Atom, Intel Atom Inside, Intel Core, Intel Inside,
Intel Inside Logo, Intel Viiv, Intel vPro, Itanium, Itanium Inside,
Pentium, Pentium Inside, Viiv Inside, vPro Inside, Xeon, and Xeon Inside
are trademarks of Intel Corporation in the U.S. and other countries.
NVIDIA marks and logos are trademarks or registered trademarks in the
United States and other countries and are used under license from NVIDIA
Corporation. All other company and/or product names mentioned herein are
trademarks and/or registered trademarks of their respective companies.
*
Specifications are subject to change without notice.
Sager PBL21 Series Detail Specifiations
Processor
Intel® Core™ Mobile i7, Intel® Core™2 Quad Mobile
Processors Intel® Core i7-2630QM, 2.0~2.8GHz,32nm, 6MB,
45W
Core Logic
Intel PM55 Chipset + ICH9M
Memory
Supports Dual Channel DDR3
Two 204Pin SODIMM sockets, support for DDR3 800/1066/1333MHz
Expandable up to 8GB (32
bit OS editions have a memory limitation of 2.8 GB. Other hardware or
application limitations may further prevent use of all installed memory.
Windows 7 / Vista 64bit is required for memory configurations of 4GB and
above.)
BIOS
4MB Flash ROM BIOS
Display
15.6" Full HD 16:9 LED (1633x768) or (1920x1080) Display with Super Clear Type
screen
Graphics Processor
NVIDIAGeForce GT540M Graphics w/1GB
GDDR3 Video Memory for (1633x768)
NVIDIAGeForce GT540M Graphics w/2GB
GDDR3 Video Memory for (1920x1080)
PCIe*2.0 x 8
MicrosoftDirectX11
compatible
HDCP supported
Storage
1 Detachable 2.5" 9.5mm (H) SATA Hard Disk Drive
1 12.7mm (H) Optical Drive Bay, SATA Interface
Interchangeable with DVD Burner Combo drive, Blu-ray/DVD Burner Combo Drive
Audio System
High Definition Audio Interface
2 Built-in Microphone support
2 Built-in Speakers
Pointing Device
Integrated Touchpad
Integrated Disable/Enable button for touchpad
Keyboard
Full Sized Keyboard with 102 key emulation without stick-point
Windows Hot keys
Integrated with Hot Keys for LCD Brightness, Suspend, Panel/CRT Display, Volume
Control
Control buttons for Power USB, WoW Video & Audio, Program DJ to launch
application
I/O Ports
USB 2.0 x 2, HDMIx1,
RGB: VGA port x 1
Microphone-in x 1,
Headphone-out x1,
DC-in jack ,x 1
Kensington lock x 1
3-in-1 Flash Card Reader(SD/MMC/MS) x 1
Internal microphone x 1
RJ45 x 1
ESATA+USB x 1
Slots
3-in-1 Card Reader (SD/MMC/Ms)
1 MiniCard Slot for WLAN Module
Communication
Built-in Gigabit Ethernet LAN
Bluetooth™ V2.1 module
Internal 802.11b/g/n wireless LAN module or
IntelCentrinoAdvanced-N
6230 802.11b/g/n with BT 2.1 wireless LAN half mini card module
Security
Kensington?Lock
Trusted Platform Module: TPM 1.2
Power System
1 Removable 6 cells smart Lithium-Ion battery pack, 5200mAh.
Full Range AC-in 90~264V, 47~63Hz, DC output: 90W with 19V AC Adapter
Power Management
System Management Mode (SMM)
Suspend to HDD / DRAM
Full features of SMI Power Management, Doze, Sleep,
Suspend/Resume Mode
Wake on LAN from S3
Physical Characteristic
5.95 LBs with Battery Pack
14.84" (w) x 10.04" (d) x 1.06~1.48" (h)
Other Features
Built-in 1.30M Digital Video Camera
On/Off Switch for wireless control
Optional Modules
External USB ATSC HDTV / ANALOG TV-Tuner with Remote
Specifications are subject to change without notice
