Revolutionary performance for users looking for the most intense, high
performance gaming experience. The Intel Core 2 Extreme quad-core mobile
processor provides exceptional performance for ultra realistic games and
advanced multi-threaded digital media creation applications. This is the
processor for users who want their hardware to take them to the top of their
game.

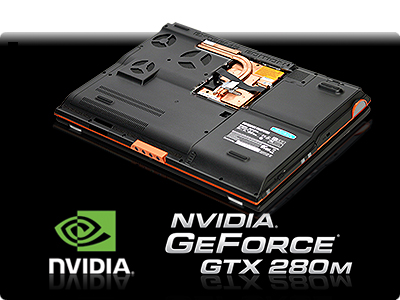

Leading Graphics Technology From nVIDIA
The world’s fastest notebook GPUs, power the ultimate DX10 notebook gaming
platform. The unified architecture of the GeForce GTX 280M GPUs provides
unparalleled performance and the most realistic 3D graphics effects
available on a PC. And, with NVIDIA Pure Video HD technology, you’ll
experience unsurpassed High-Definition video in vivid color and superb
picture clarity.
Enhance Your Scene with HDMI Interface
Turn your HDTV into a brilliant high resolution computer display with our
HDMI port that supports full 1080P HD output allowing you to connect to any
1080P HDTV at full 1920x1080 16:9 HD resolutions. Your TV will become a
first-rate PC monitor or allow you to enjoy movies saved on your computer in
full HD on a Larger screen.

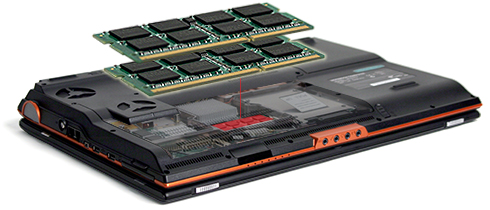

Enhance Performance with DDR3 System Memory
Your system's performance will never disappoint thanks to the latest DDR3
1066MHz system memory providing greater memroy bandwidth for performance
that will never lag behind.
Enhance Your Movie Watching Experience with Blu-ray Technology
Enjoy your favorite Hollywood blockbuster movies in high-definition
anywhere, anytime with the NP5797 BR Edition playing Blu-ray Disc
movies. The NP5797 Blu-ray drive not only reads Blu-ray Disc it also
capable of reading and writing to most DVD & CD formats in the furture.

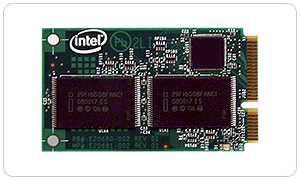

New Intel Turbo Memory 2.0
Say goodby to long startup and load times with the new 2GB/4GB Intel?
Turbo Memory, enabling Windows Vista? ReadyBoost and ReadyDrive support.
Along with application Pinning support, these features will significantly
improve your system boot time and application load time.

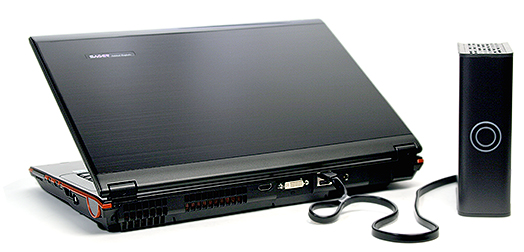

Expanded Storage with E-SATA support
Never again worry about taking up too much space with the media you want
to save because of the expanded storage space made available through the use
of E-SATA. This advanced technology allows for ample space without
sacrificing performance compared to USB or FireWire as it is connected
directly to the HDD controller when using E-SATA.

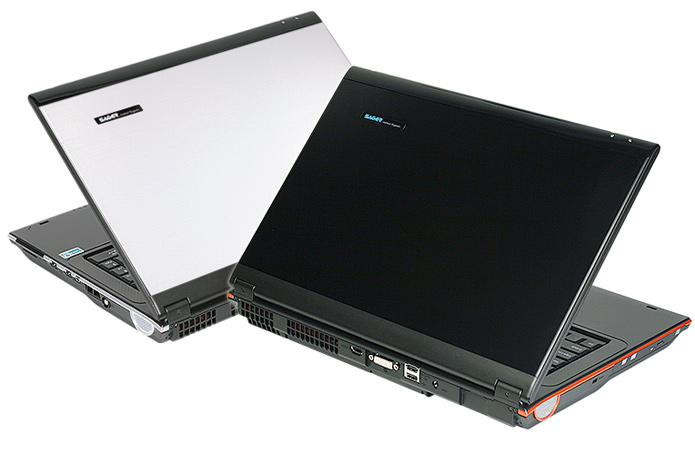

On the Go in Style
Because style matters, the NP5797 comes available in two eye catching
designs. Choose between two visually appealing cases that give your system
an additional splash of color but also maintain its sophisticated
appearance.
Sager recommends Windows Vista? Ultimate
*
Celeron, Celeron Inside, Centrino, Centrino Inside, Centrino Logo, Core
Inside, Intel, Intel Logo, Intel Core, Intel Inside, Intel Inside Logo,
Intel Viiv, Intel vPro, Itanium, Itanium Inside, Pentium, Pentium Inside,
Viiv Inside, vPro Inside, Xeon, and Xeon Inside are trademarks of Intel
Corporation in the U.S. and other countries. All other company and/or
product names mentioned herein are trademarks and/or registered trademarks
of their respective companies.
*
Specifications are subject to change without notice.
Sager NP5797 Series Detail Specifiations
Processor
45nm Intel? Core? 2 Duo Processor P8400 (2.26GHz) /
P8600 (2.40GHz), 3MB L2 Cache, 1066FSB, 478uFC-PGA, Socket P
45nm Intel? Core? 2 Duo Processor P9500 (2.53GHz), 6MB
L2 Cache, 1066FSB, 478uFC-PGA, Socket P
45nm Intel? Core? 2 Duo Processor T9400 (2.53GHz) /
T9600 (2.80GHz), 6MB L2 Cache, 1066FSB, 478uFC-PGA, Socket P
Supports Dual Channel DDRIII SDRAM
Two 204Pin SODIMM sockets
Expandable up to 8GB DDRIII 800MHz / 1066MHz
BIOS
4MB Flash ROM BIOS
Display
17" (16:10) WSXGA+ (1680x1050) with Super Clear Glare Type
Screen or
17" (16:10) WUXGA (1920x1200) with Super Clear Glare Type Screen
Graphics Processor
nVIDIA? GeForce? GTX 280M with 1GB DDR3 Video Memory or
nVIDIA? GeForce? 9800M GTX with 1GB DDR3 Video Memory or
nVIDIA? Quadro? FX 2700M with 512MB
DDR3 Video Memory
PCI-Express? 16X
Microsoft? DirectX? 10 Compatible
HDCP supported
Storage
1 Detachable 2.5" 9.5mm (H) SATA Hard Disk Drive
1 12.7mm (H) Optical Drive Bay, SATA Interface,
Interchangeable with DVDñR/RW Combo drive, Blu-ray/DVDñR/RW
Combo Drive
Audio System
Built-in High Definition Sound System
SRS WOW Surround Sound Technology inside
Compatible Sound-Blaster PRO?
S/PDIF Digital output
1 Built-in Microphone
2 Built-in Speakers, 1.5W
1 Sub-woofer, 2W
Pointing Device
Integrated Touchpad with Scrolling function
Keyboard
Full Sized Keyboard with Numeric Key Pad
Windows Hot keys
Integrated with Hot Keys for LCD Brightness, Suspend, Panel/CRT
Display
Hot Keys for E-Mail, Web Browser, and Application
I/O Ports
1 DVI output Port
1 HDMI output Port (support single channel) with audio output
3 USB 2.0 Ports
1 eSATA Port
1 Headphone Jack
1 Microphone Jack
1 Line-in Jack
1 S/PDIF output Jack
1 RJ-45 LAN (10/100/1000Mbps)
1 RJ-11 Modem
1 IEEE-1394a Fire Wire
1 RF-in Jack (Requires optional TV-Tuner Module)
1 CIR for TV remote controller
Slots
1 Express Card 34 / 54 Slot
7-in-1 Card Reader (MMC/RSMMC/MS/MS Pro/MS Duo/SD/Mini-SD)
3 MiniCard Slots (1st for TV-Tuner, 2nd for WLAN, 3rd for Turbo
Memory Module)
Communication
Built-in 56K MDC modem with V.90 & V.92 compliant
Built-in Gigabit Ethernet LAN
Bluetooth? V2.0 + EDR module
Intel? 5300AGN 802.11a/b/g/n wireless LAN
Security
Kensington? Lock
Integrated Fingerprint Reader
Power System
1 Removable 8 cells smart Lithium-Ion battery pack, 4.4Ah
Full Range AC-in 100~240V, 50~60Hz, DC output: 20V, 6.0A AC
Adapter
Power Management
System Management Mode (SMM)
Suspend to HDD / DRAM
Full features of SMI Power Management, Doze, Sleep,
Suspend/Resume Mode
Physical Characteristic
8.35 LBs with Battery Pack
15.6" (w) x 11.5" (d) x 1" ~ 1.8" (h)
Other Features
Built-in 2.0M Digital Video Camera
Optional Modules
Inte?l TurboMemory Module 2GB/4GB (Intel Robson
Technology)
External USB ATSC HDTV / ANALOG TV-Tuner with Remote
External USB Floppy Drive
Specifications are subject to change without notice
